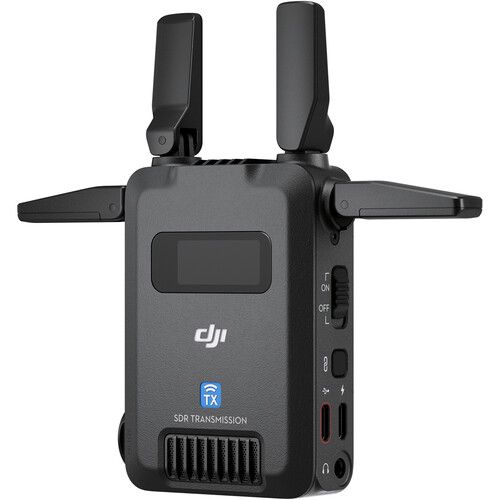

For stable, high-quality video transmission on a small-to-medium-sized shooting set, the SDR Transmission Transmitter from DJI is designed for long-range transmission of footage up to 1080p60 resolution using DJI's proprietary technology. SDR (Software Defined Radio) transmission uses a tri-bandwidth (DFS, 2.4 GHz, and 5.8 GHz) automatic frequency-hopping system, resulting in high penetration and distances up to 1.9 miles. The system is ideal for transmitting footage from a camera rig to an unlimited number of receivers or mobile devices, especially on crowded sets or around dense architecture that would otherwise overwhelm a conventional consumer Wi-Fi-based solution.
Robust Transmission up to 10,000'
The DJI SDR Transmission transmitter can reach up to 10,000' using its proprietary SDR technology accommodating wide, dynamic filming areas. It has a minimal latency of just 35ms, ensuring smooth monitoring and extended reach.
High-Quality Image Transmission
The system supports video transmission with up to 1080p60 resolution with a high bitrate of up to 20 Mb/s, ensuring smooth monitoring and collaboration with high image detail, crisp audio, and vivid color.
Seamless Auto-Frequency Hopping
SDR technology supports seamless auto-frequency hopping across 2.4 GHz, 5.8 GHz, and DFS frequency bands. In case of interference, it can automatically switch to the cleanest channel when operating in complex environments with many obstacles.
Unlimited Number of Receivers
In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience for multiple collaborators and meeting the independent monitoring needs of various professional roles.
Control Mode
This mode supports stabilizer control (virtual joystick, gimbal recentering, etc.) and camera control (PTP control and Sony camera virtual menu).
Additional Features
- Inputs and transmits up to 1080p60 video with metadata
- Built-in status display
- Four built-in antennas that transmit over 1.9 miles via SDR and over 650' via 2.4/5 GHz Wi-Fi
- Ronin compatible; includes gimbal adapter plate
- Low 35ms latency
- High bit rate up to 20 Mb/s
- HDMI and SDI video inputs with embedded audio
- USB-C PD and USB-C DC charging
- Built-in L-series/NP-F battery plate to power with optional battery
