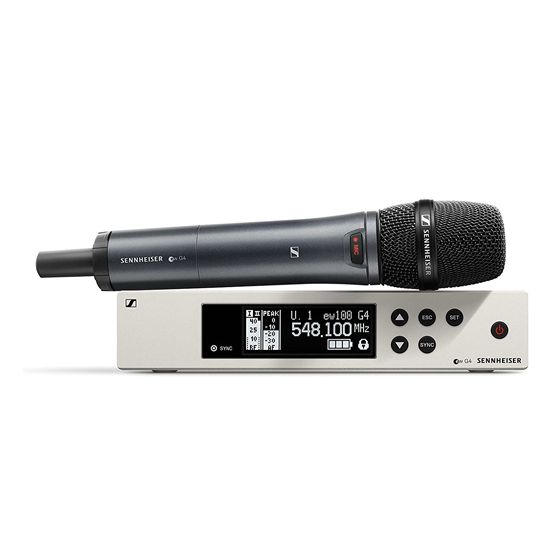

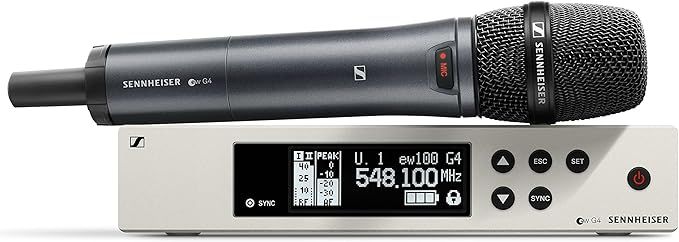

SENNHEISER EW 100 G4 -835-S-B VOCAL SET

The MMD 835 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback.



The rugged, all-metal handheld transmitter features a mute function and can be locked out to prevent accidental changes during a performance. A backlit LCD displays essential information and provides fast menu access. The transmitter syncs to the receiver via infrared with a quick press on the Sync button.

The SKM 100 G4-S is powered via two AA batteries or a rechargeable BA 2015 Accupack battery (available separately). An LA 2 charging adapter (available separately) allows for recharging the Accupack without removing it from the transmitter—requires the L 2015 quick-charging unit (available separately).

The transmitter's interchangeable capsule design allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to narrow supercardioid —capsules include the MMD 835, MMD 845, MME 865, MMD 935, MMD 945, and MMD 42.

The robust, metal EM 100 receiver offers a high-contrast, black and white LCD. The display uses a streamlined menu system with a dedicated Escape button for quick menu navigation and shows battery status of the associated transmitter.



The system features 20 fixed frequency banks with up to 12 compatible frequency presets and 1 user bank with up to 12 user-programmable frequencies.

To prevent interference, the EM 100 receiver's true-diversity reception compares incoming signals on two independent receiver circuits to ensure optimal RF quality. To ensure crystal clear audio, Sennheiser's proprietary HDX compander technology maximizes the microphone's signal-to-noise ratio, while avoiding RF noise.

The built-in equalizer enables you to change the frequency response of the output signal; you can reduce the bass range and boost the treble range. The receiver also offers an adjustable output level range of 48 dB to match the audio input of your mixing board or PA system. Musicians will appreciate the built-in guitar tuner.

The back panel houses a balanced XLR output as well as an unbalanced 1/4" output. A kit is included for rackmount installation. The unit comes with a universal power supply and EU, US, UK, Korea, Australia, and China adapters.

To simplify and speed up your workflow, two RJ10 data networking ports allow you to daisy-chain up to 12 receivers and quickly perform a frequency setup for the entire multi-channel system via the Easy Setup function.



If you assign the frequencies manually, you can expand the setup to accommodate a maximum of 20 receivers. An RJ10 cable is included.

The detachable antennas with BNC sockets allow you to create a larger system using up to four EM 100 receivers connected to a single pair of remote antennas. This setup requires the ASA 214 active antenna splitter (available separately).



Adding a pair of A 1031-U omnidirectional antennas or a pair of A 2003 UHF directional antennas increases the range of your system and offers increased protection against interference.

Sennheiser offers a bodypack transmitter with variety of lavalier and headset microphone options to adapt your EW system as your needs evolve.



• The discrete ME 2-II and MKE 2 lavalier mics provide exceptional clarity in spoken-word applications.
• The lightweight ME 3-II is a comfortable, durable headset microphone for active presentations.
• The Ci 1 instrument cable lets you connect the bodypack transmitter to a guitar or bass.
