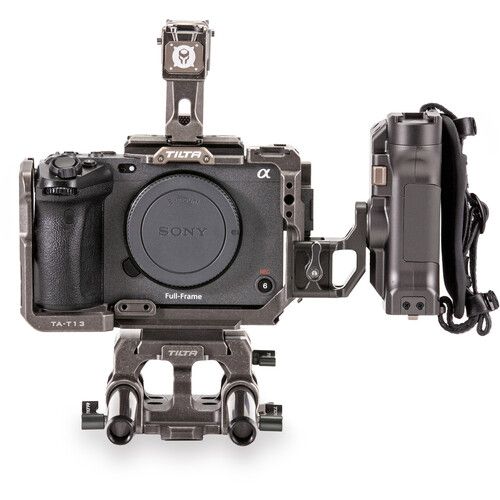

TILTA TA-T13-C TILTAING SONY FX3 PRO KIT

The lightweight and modular Camera Cage for Sony FX3 from Tilta offers the option of full cage protection or a lighter-weight half cage form suitable for gimbal use. This Tactical  aluminum cage maintains access to the camera's controls and features a removable top plate that enables the use of the original XLR top handle or another handle. Use this cage to mount a variety of accessories using the top plate NATO rail, the cold shoe mounts, and the 1/4"-20 threads with locating pins.

The Sony FX3 cage also features a quick release plate for use with Arca-style tripod heads and gimbal mounts. It can be used in both horizontal and vertical orientations and includes a right wrist strap and screwdriver.

The Rotatable Quick-Release Top Handle from Tilta enables you to quickly select the handle orientation you prefer. This Tactical gray handle rotates 90° with the push of a button and attaches securely to your camera or cage's cold shoe mount using a locking thumbscrew.

Constructed from aluminum and stainless steel, this quick release handle features two cold shoe mounts with spring-loaded safety latches. It also incorporates several anti-twist 1/4"-20 threads for mounting accessories.

The tactical gray 15mm LWS Baseplate Type IV is compatible with Tilta full cages for RED KOMODO, Sony FX3, and Panasonic BGH1 cameras. Use this baseplate to add 15mm LWS rod support for accessories like a follow focus, matte box, or lens motor. The 15mm LWS Baseplate Type IV's dovetail bottom slides onto a separately available Tilta-standard baseplate or ARRI-style baseplate when used with the separately available Tilta to ARRI adapter. The bottom of the baseplate also incorporates several 1/4"-20 and 3/8"-16 threads for mounting a quick release plate.

The Tilta Left-Side Advanced Power Handle, in tactical gray, attaches to the left side of Tiltaing camera cages using your choice of an optional rail/rosette mounting bracket—Tilta Left-Side Adapter Type IV, V, or VI. The handle accepts a Sony F570 battery (sold separately) and features two power outputs for running accessories off the battery. It offers an 8V USB Type-C output port and 12 VDC port. In addition to this, the Advanced Power Handle provides a run/stop button for controlling record start/stop on compatible cameras over an optional R/S cable connection.

Tilta's 8" Threaded 15mm Rod is a 8" rod with female threading on both ends. This allows you to use optional threaded rod adapters to extend the length. As a standard practice, Tilta chamfers one end of their rods and leaves the other end with a straight cut. The chamfering makes it easier to slide accessories onto the rod, while the end with the straight cut makes for a smoother rod join.

The rod is made from machined aluminum for a balance between weight and strength, and then anodized black for wear and corrosion resistance. Please note that there is no industry-wide standard for support rod threading, so when sourcing optional rod extenders, it is best to stay within one brand.

The Advanced Left-Side Handle Adapter Type VI from Tilta enables you to mount a Tiltaing Left-Side Wooden Handle to the NATO rail mount on select Tilting camera cages. This Tilta  Type VI adapter is constructed of aluminum and stainless steel and comes with an Allen key.

Prevent the HDMI cable from accidentally disconnecting when plugged into your Sony FX3 cinema camera with this Tilta gray HDMI Cable Clamp Attachment from Tilta. This cable clamp is designed to mount onto the Tilta camera cage for the Sony FX3 using the captive thumbscrew. It is constructed with durable aluminum and stainless steel, and it comes with an Allen wrench to tighten the screw securely.

This HDMI Extension Cable from Tilta is primarily designed to connect to your camera inside your Tiltaing cage, providing you with an ergonomic method of wiring your camera to an external HDMI monitor. Simply plug the male HDMI end into the camera, and connect your display's HDMI cable to the female port of this extension cable. It is also compatible with Tilta's HDMI cable clamps for security.

The Tiltaing Run/Stop Cable from Tilta connects the Tiltaing Advanced Side Handle to your Sony a6, a7, or a9 series camera, enabling run/stop triggering with the push of a button.
